Examples

Orchestrating dbt Models with Airflow

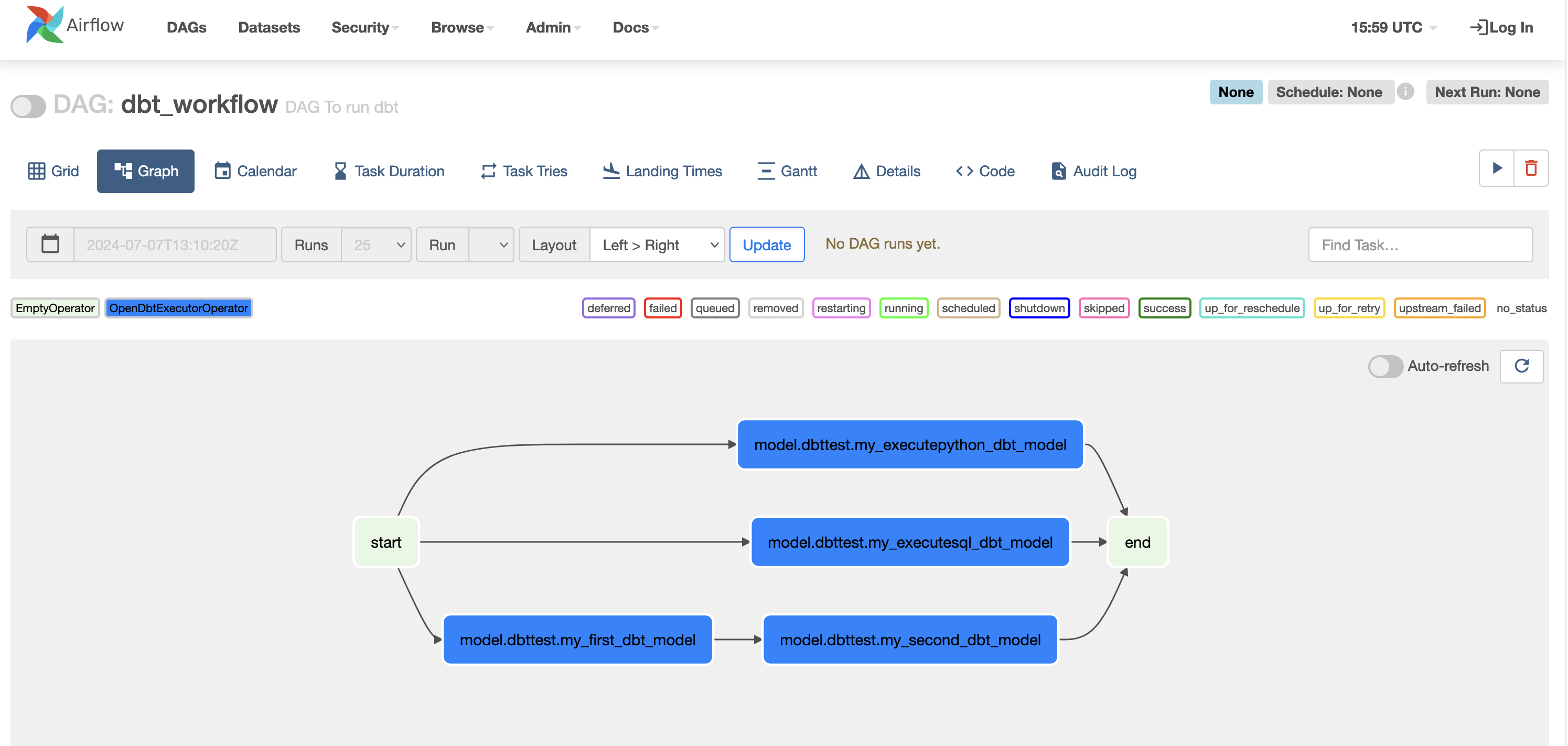

Step-1: Let's create an Airflow DAG to orchestrate the execution of your dbt project.

with DAG(
        dag_id='dbt_workflow',
        default_args=default_args,
        description='DAG To run dbt',
        schedule_interval=None,
        start_date=days_ago(3),
        catchup=False,
        max_active_runs=1
) as dag:
    start = EmptyOperator(task_id="start")
    end = EmptyOperator(task_id="end")

    DBT_PROJ_DIR = Path("/opt/dbtcore")

    p = OpenDbtAirflowProject(project_dir=DBT_PROJ_DIR, profiles_dir=DBT_PROJ_DIR, target='dev')
    p.load_dbt_tasks(dag=dag, start_node=start, end_node=end, include_singular_tests=True, include_dbt_seeds=True)

Creating Airflow DAG that selectively executes a specific subset of models from your dbt project.

from opendbt.airflow import OpenDbtAirflowProject

# create dbt build tasks for models with given tag
p = OpenDbtAirflowProject(resource_type='model', project_dir="/dbt/project_dir", profiles_dir="/dbt/profiles_dir",
                          target='dev', tag="MY_TAG")
p.load_dbt_tasks(dag=dag, start_node=start, end_node=end)

Creating dag to run dbt tests

from opendbt.airflow import OpenDbtAirflowProject

# create dbt test tasks with given model tag
p = OpenDbtAirflowProject(resource_type='test', project_dir="/dbt/project_dir", profiles_dir="/dbt/profiles_dir",
                          target='dev', tag="MY_TAG")
p.load_dbt_tasks(dag=dag, start_node=start, end_node=end)

Integrating dbt Documentation into Airflow

Airflow, a powerful workflow orchestration tool, can be leveraged to streamline not only dbt execution but also dbt documentation access. By integrating dbt documentation into your Airflow interface, you can centralize your data engineering resources and improve team collaboration.

here is how: Step-1: Create python file. Navigate to your Airflow's {airflow}/plugins directory. Create a new Python file and name it appropriately, such as dbt_docs_plugin.py. Add following code to dbt_docs_plugin.py file. Ensure that the specified path accurately points to the folder where your dbt project generates its documentation. https://github.com/memiiso/opendbt/blob/a5a7a598a3e4f04e184b38257578279473d78cfc/tests/resources/airflow/plugins/airflow_dbtdocs_page.py#L1-L6

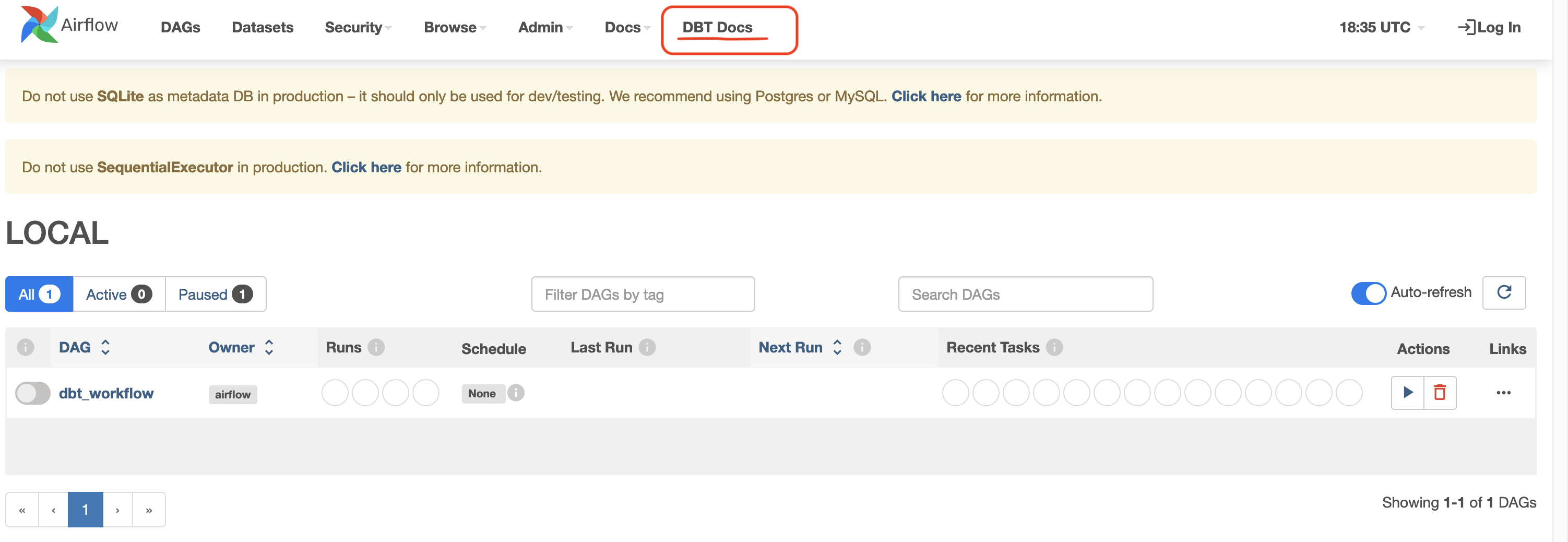

Step-2: Restart Airflow to activate the plugin. Once the restart is complete, you should see a new link labeled DBT Docs within your Airflow web interface. This link will provide access to your dbt documentation.

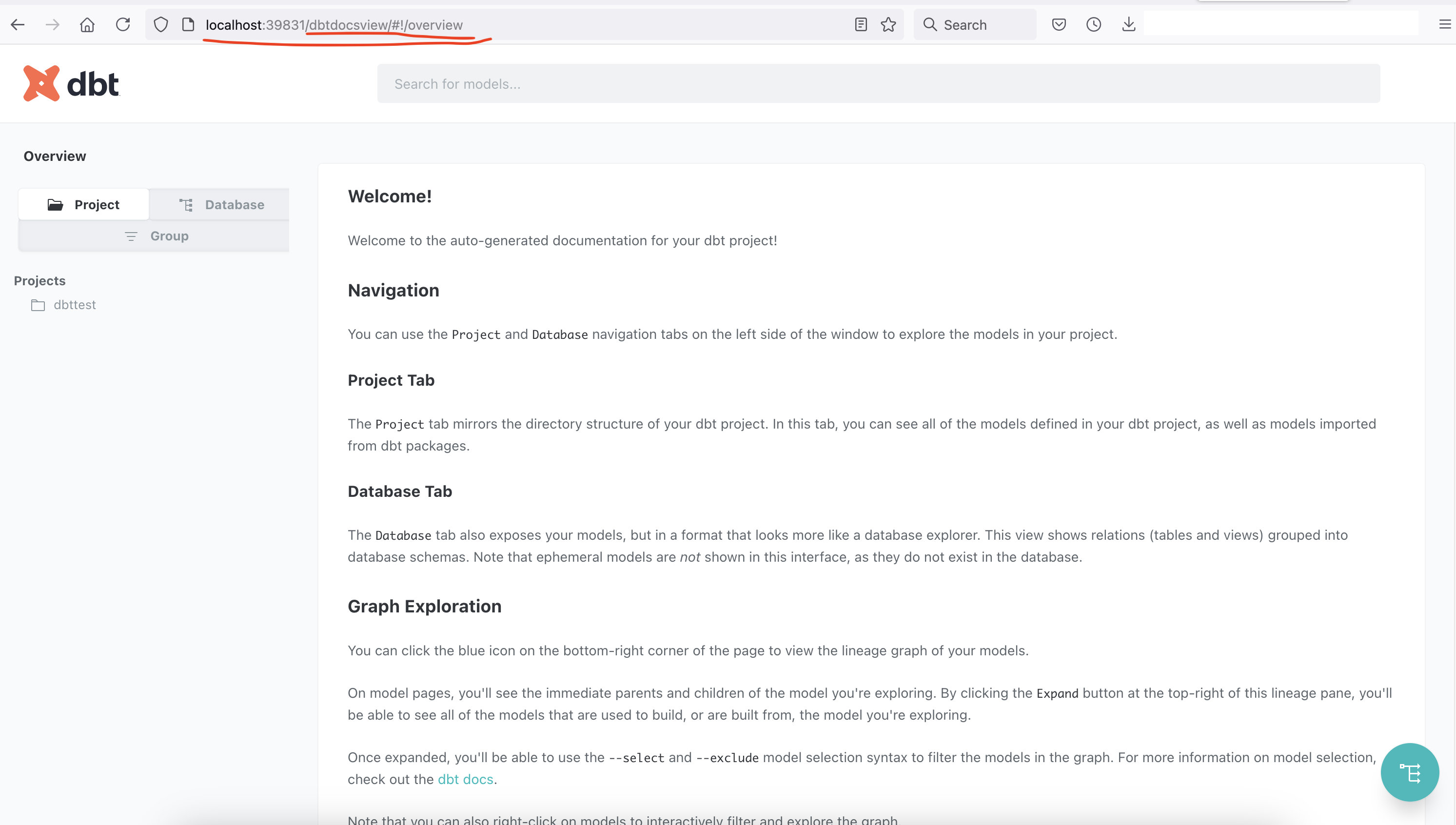

Step-3: Click on the DBT Docs link to open your dbt documentation.
