Opendbt Catalog

See it in action

Generating the Enhanced Catalog

To generate the enhanced catalog UI with column-level lineage, use the opendbt CLI:

python -m opendbt docs generate

This command will: - Generate standard dbt catalog files (catalog.json, manifest.json) - Generate catalogl.json with column-level lineage information - Deploy the enhanced catalog UI to your target directory

Important: Using the standard dbt docs generate command will generate only the basic dbt documentation without the enhanced UI and catalogl.json file.

Customizing the Catalog UI

You can override the default enhanced UI with your own custom index.html by placing it in your dbt project's docs directory:

1. Create a docs folder in your dbt project root (if it doesn't exist)
2. Add your custom index.html to this folder
3. Ensure dbt_project.yml includes the docs path:

   docs-paths: ["docs"]


4. Run python -m opendbt docs generate

The priority order is: 1. User-provided index.html from docs-paths (highest priority) 2. Opendbt's enhanced catalog UI (automatic fallback) 3. Standard dbt-generated UI (only if using dbt docs generate)

Airflow Integration

Configuration

The plugin auto-detects single/multi-project mode. If Airflow Variable opendbt_docs_projects is set, it overrides paths in the code.

Using Airflow Variable

# Single project
airflow variables set opendbt_docs_projects '"/opt/dbtcore/target"'

# Multiple projects
airflow variables set opendbt_docs_projects '["/opt/dbtcore/target", "/opt/dbtfinance/target"]'

Using hardcoded paths

from pathlib import Path
from opendbt.airflow import plugin

# Single project
airflow_dbtdocs_page = plugin.init_plugins_dbtdocs_page(
    Path('/opt/dbtcore/target')
)

# Multiple projects
airflow_dbtdocs_page = plugin.init_plugins_dbtdocs_page([
    Path('/opt/dbtcore/target'),
    Path('/opt/dbtfinance/target')
])

Project names are extracted from parent directory (e.g., /opt/dbtcore/target → dbtcore).

Access docs at /dbt/dbt_docs_index.html. For multiple projects, use ?project=<name> or the dropdown selector.

Catalog Files Summary

• catalog.json: Generated by dbt
• catalogl.json: Generated by opendbt contains extended catalog information with column level lineage
• manifest.json: Generated by dbt
• run_info.json: Generated by opendbt, contains latest run information per object/model

Key Features

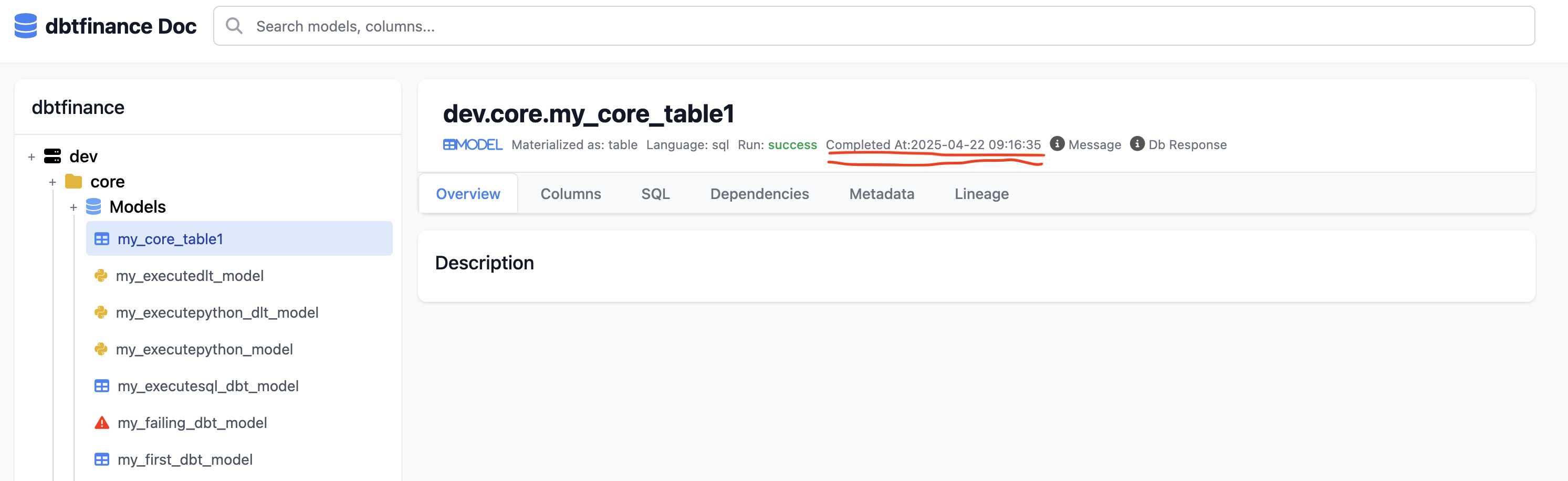

Up to date Run information

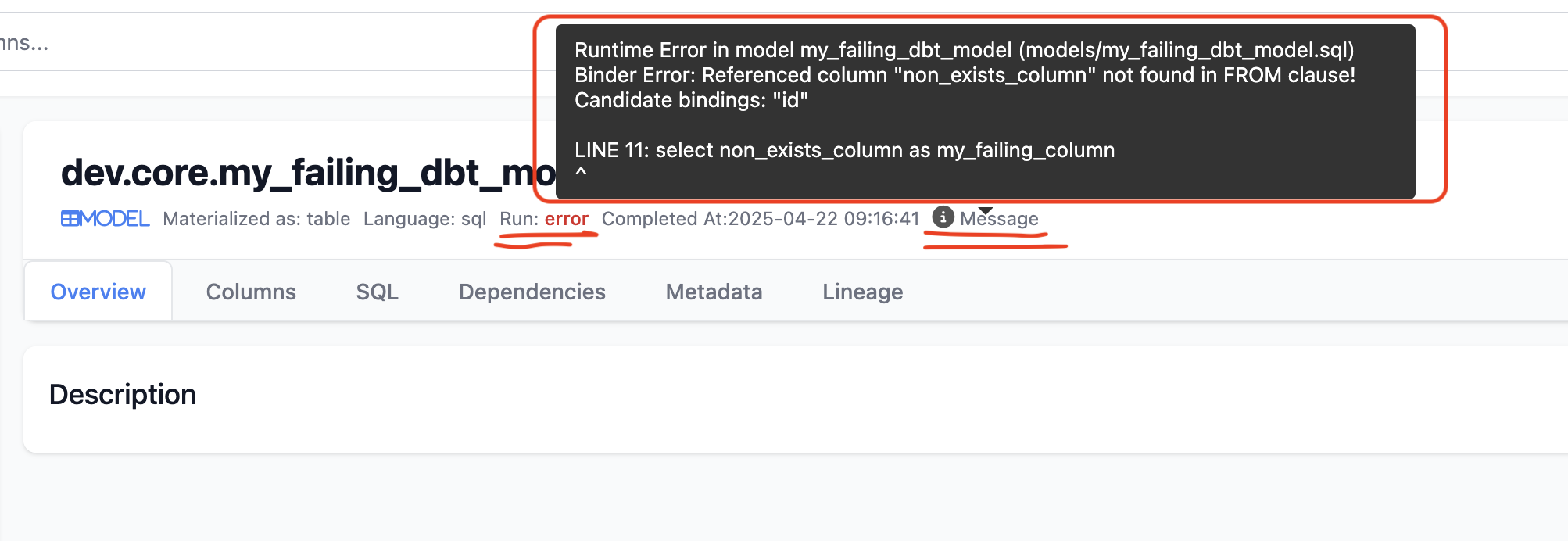

Run information with error messages

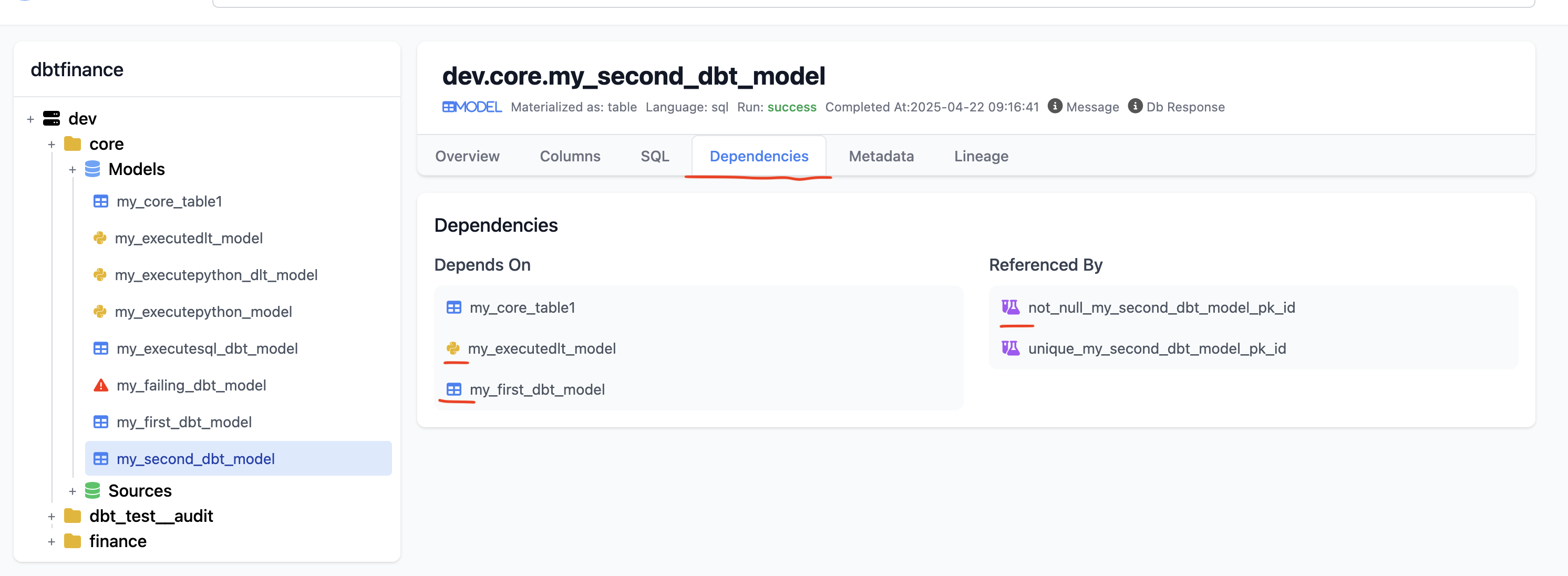

Model dependencies including tests

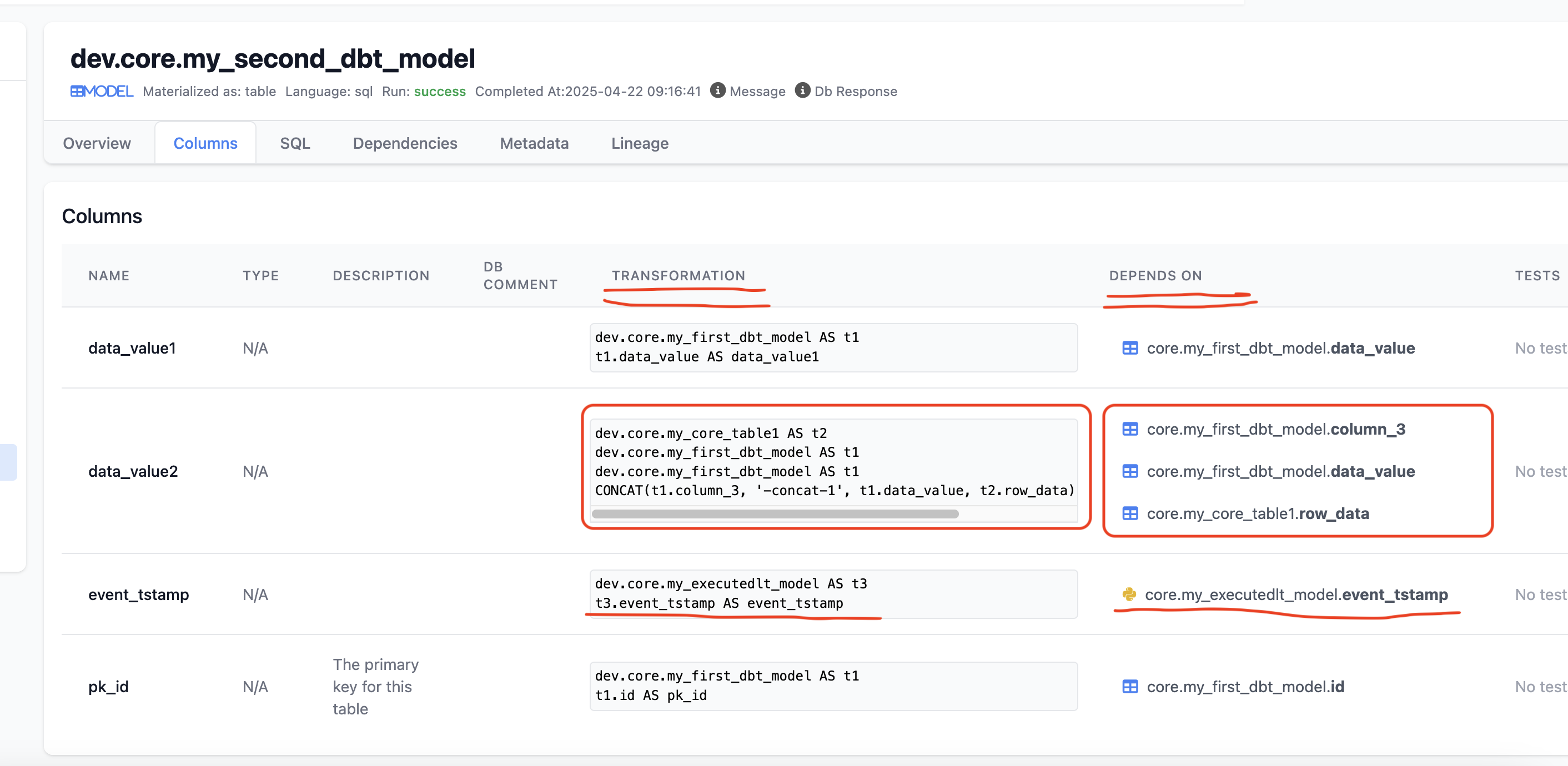

Column level dependency lineage, transformation

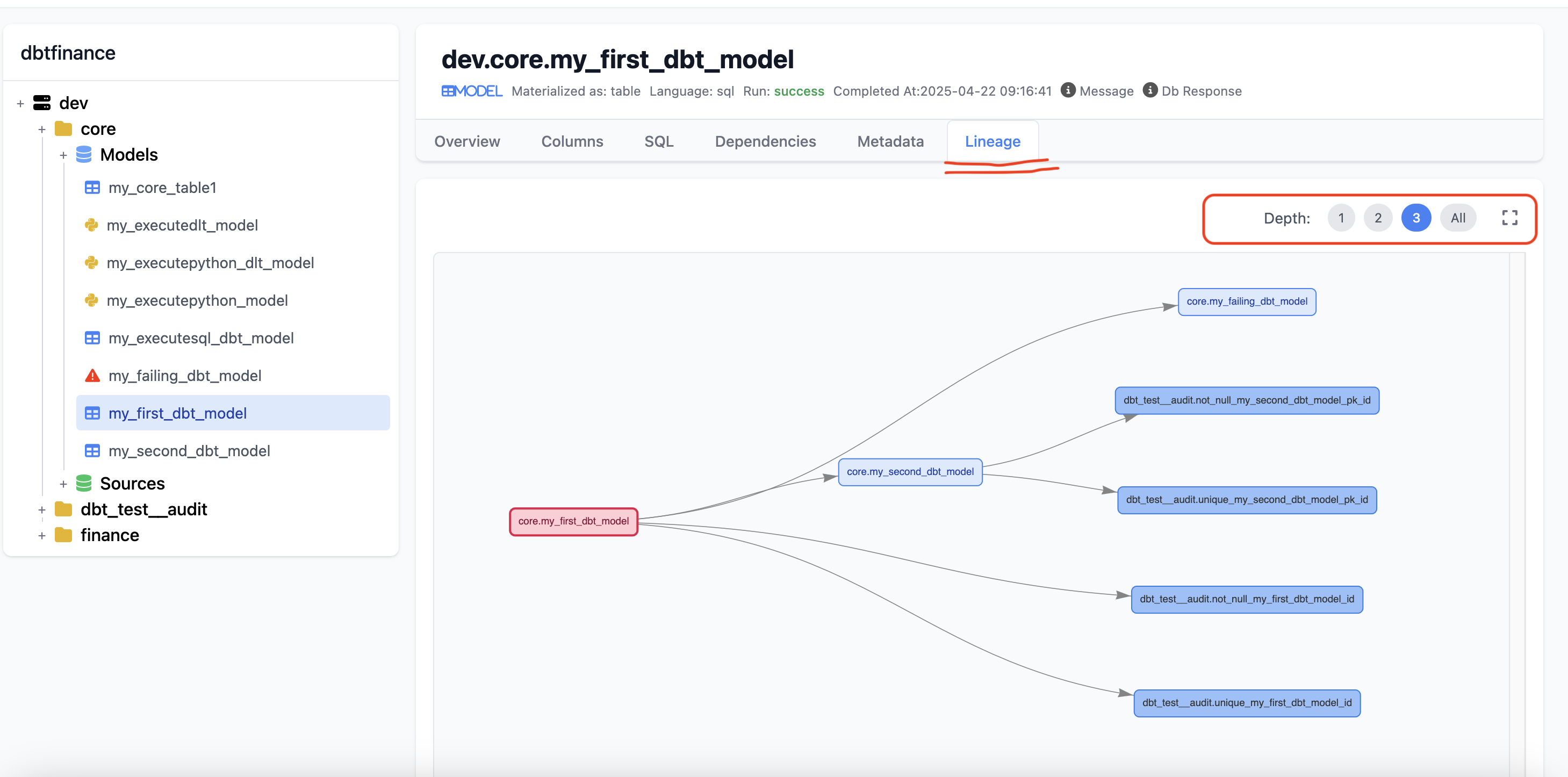

Dependency lineage

Multi-project support
